| Miejsce pochodzenia | CHINY |
| Nazwa handlowa | Hightop |
| Orzecznictwo | CE，EPA，ISO，TUV |

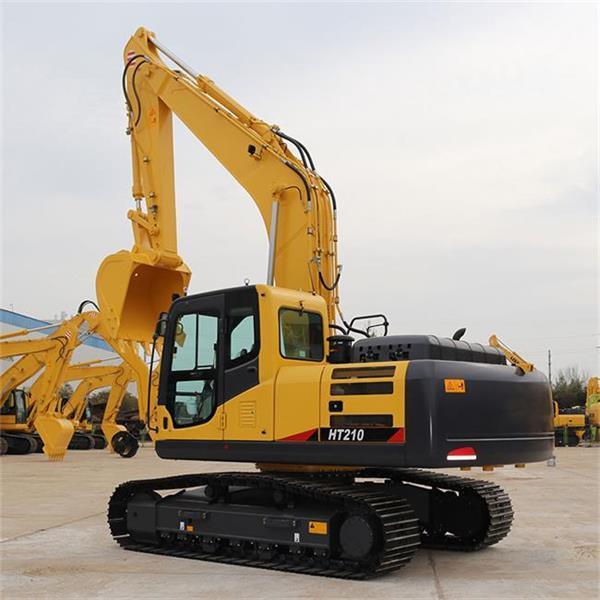

| Numer modelu | HT210 |
| Model | HT210 |
|---|---|
| Total Weight | 21t |
| Bucket Capacity | 0.9-1.2m³ |
| Engine Model | Cummins 6BTAA5.9 |
| Rated Power | 133kw/2000r/min |
| Fuel Tank Volume | 350L |
| Walking Speed | 5.2/3.5km/h |
| Swing Speed | 11.7r/min |
| Climbing Ability | 35° |
| Bucket Digging Force | 138kn |
| Arm Digging Force | 99kn |
| Ground Pressure | 44kpa |
| Traction | 174kn |
| Hydraulic Pump Model | K3V112DT |
| Max Flow Rate | 223*2L/min |
| Work Pressure | 34.3/37.3mpa |
| Hydraulic Tank Volume | 246L |
| Track Grounding Length | 3445mm |
|---|---|
| Track Length | 4250mm |
| Rail Gauge | 2180mm |
| Track Width | 2780mm |
| Track Shoe Width | 600mm |
| Turntable Width | 2700mm |
| Distance from Rotation Center to Rear End | 2720mm |
| Track Tooth Thickness | 26mm |
| Counterweight Height | 2045mm |
| Transportation Grounding Length | 4940mm |
| Arm Length | 2900mm |
| Boom Length | 5700mm |
| Max Excavation Height | 8630mm |
| Max Unloading Height | 6180mm |
| Max Digging Depth | 5501mm |
