HT25J 2.5-ton CE Certified Mini Excavator

Name: HT25J 2.5-ton CE Certified Mini Excavator
Brand: Shandong Hightop Group
SKU: HT25J
Availability: InStock

Miejsce pochodzenia	Chiny
Nazwa handlowa	Hightop
Orzecznictwo	CE，EPA，ISO，TUV
Numer modelu	HT25J

Szczegóły produktu

Długość całkowita/Długość transportowa A:

2895

Całkowita szerokość B:

1400

Szerokość górna D:

1310

Wysokość całkowita (góra kabiny) C:

2450

Warunki płatności i wysyłki

Minimalne zamówienie

1 zestawy

Szczegóły pakowania

Opakowanie z drewnianego pudełka

Czas dostawy

5-14 dni roboczych

Zasady płatności

L/C, D/A, D/P, T/T, Western Union

Możliwość Supply

100 zestawów miesięcznie

Opis produktu

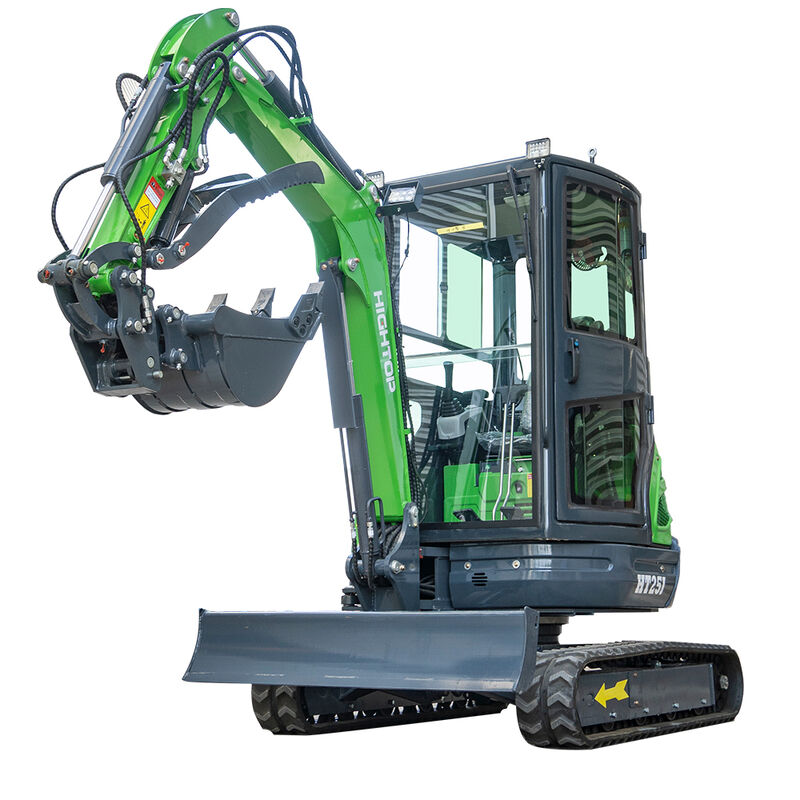

HT25J Small Excavator

The HT25J is Shandong Hightop's flagship 2.5-tonne class tracked mini excavator designed for export. With its compact design, agile handling and reliable power, it is suitable for a wide range of applications, including confined spaces, agricultural and landscaping work, municipal projects and indoor construction. The machine has obtained international certifications such as CE, ISO, EPA and Euro 5, and its quality meets both domestic and international construction standards, making it a workhorse model for small-scale and micro-scale engineering projects.

Overall Dimensions (mm)

Measurement	Value
Overall length/Shipping length A	2895
Total width B	1400
Upper width D	1310
Overall height (top of cab) C	2450
Standard track pad width F	230
Track gauge G	1170
Turning radius at the rear I	709
Track contact length J	1495
Track length K	1830
Height of the dozer blade above the ground R	255
Bucket digging depth T	250

Technical Specifications

Specification	Value
Work quality (KG)	1850
Bucket capacity (m³)	0.04
Rated power	18.9kw/2200rpm
Rotational speed	10r/min
Hill-climbing ability	30 degrees

Working Range (mm)

Measurement	Value
Maximum digging height a	3572
Maximum unloading height b	2276
Maximum digging depth c	2245
Maximum excavation distance d	3705
Minimum turning radius e	1975
Maximum height f at the minimum turning radius	2722
